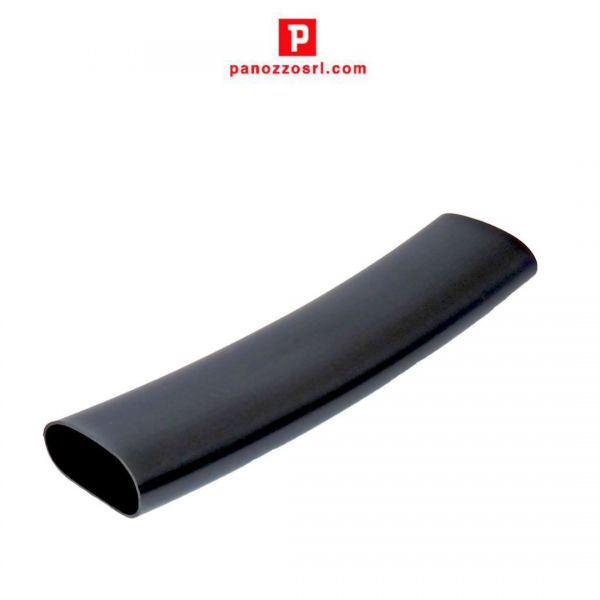

PVC SOFTWALL SLEEVES FOR HOSES PROTECTION

MATERIAL
PVC
COLOR
-
NOTE
SOFTWALL HOSE PROTECTING SLEEVE.
TEMP. -15°C + 80°C
Technical design
SIZES
CODE INNER DIAMETER EXTERNAL DIAMETER L (mt) INT. INCH EXT. INCH
10785 GPPT16/17 16 17 100 5/8" 21/32"
10786 GPPT18/19,2 18 19,2 100 23/32" 3/4"
10787 GPPT20/21,2 20 21,2 100 25/32" 27/32"
10788 GPPT22/23,2 22 23,2 100 7/8" 29/32"
10789 GPPT24/25,2 24 25,2 100 15/16" 1"
10790 GPPT25/26,2 25 26,2 100
10791 GPPT26/27,2 26 27,2 100 1.1/32" 1.1/16"
10792 GPPT28/29,2 28 29,2 100 1.3/32" 1.5/32"
10793 GPPT30/31,2 30 31,2 50 1.3/16" 1.7/32"
10794 GPPT33/34,4 33 34,4 50 1.5/16" 1.11/32"
10795 GPPT36/37,4 36 37,4 50 1.13/32" 1.15/32"
10796 GPPT38/39,4 38 39,4 50 1.1/2" 1.17/32"
10797 GPPT40/41,4 40 41,4 50 1.9/16" 1.5/8"
10798 GPPT45/46,4 45 46,4 50 1.3/4" 1.13/16"
10799 GPPT48/49,4 48 49,4 50
10800 GPPT50/51,4 50 51,4 50 1.31/32" 2"
10801 GPPT55/56,4 55 56,4 50 2.5/32" 2.5/32"
